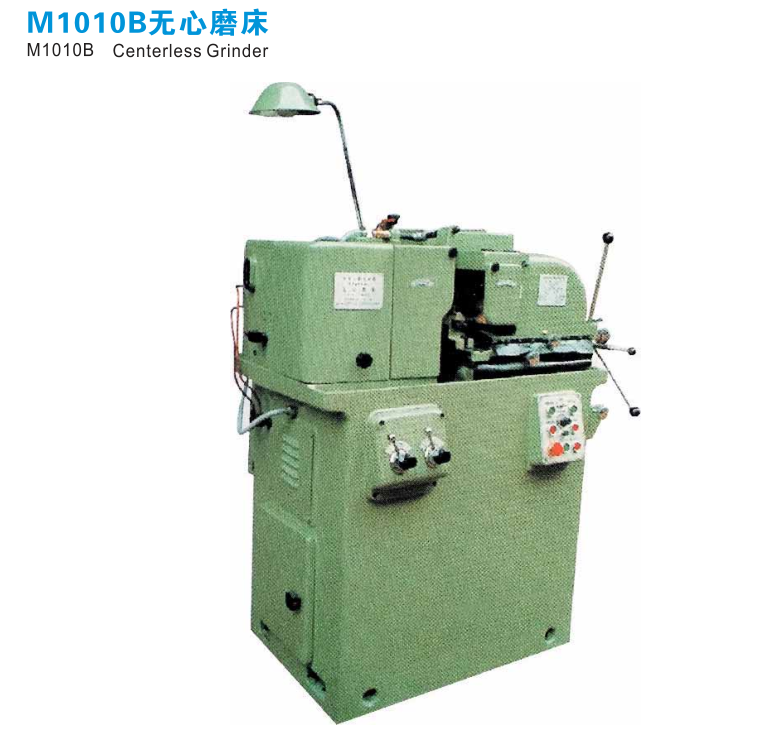

Main features of the machine tool:

★ The machine tool adopts a fixed grinding wheel frame and a movable guide wheel frame layout.

★ The grinding wheel is a cantilever structure, and the grinding wheel spindle adopts multi piece long bearing dynamic pressure oil film bearings.

★ The guide wheel is a cantilever structure and adopts a 1:30 integral cone sliding bearing.

★ The feed guide rail of the guide wheel frame adopts a dovetail shaped needle roller guide rail, and the feed adopts a differential screw.

★ The speed regulation of the guide wheel adopts AC variable frequency speed regulation.

★ The sand and guide wheel dresser adopts hydraulic transmission for reciprocating and stepless speed regulation.

★ The machine tool is equipped with a cutting mechanism.

Main purpose and scope of application

Mainly used for through grinding of cylindrical surfaces of various ring and shaft parts, and manual cutting and grinding of various stepped, conical, and cylindrical rotating surfaces.
