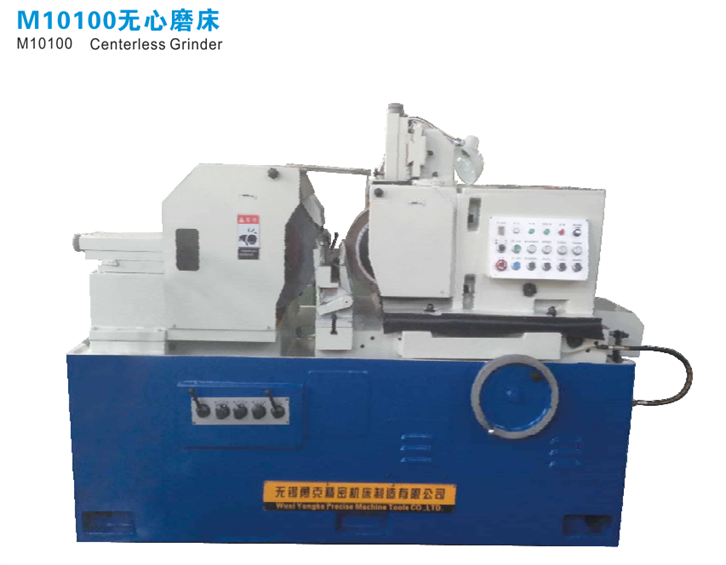

Main features of the machine tool:

★ The grinding wheel spindle bearing is a five piece dynamic pressure sliding bearing with high load-bearing capacity and stiffness.

★ The main shaft bearing of the guide wheel is a 1:30 integral sliding bearing with high load-bearing capacity and precision.

★ The guide wheel frame can rotate at a small angle in the horizontal direction. When grinding workpieces with small taper angles, the grinding wheel does not need to be tapered, which improves the utilization rate of the grinding wheel and reduces the dressing time.

★ The variable speed of the guide wheel adopts AC frequency speed regulation, which can achieve stepless adjustment.

★ The sand and guide wheel dresser adopts hydraulic transmission for reciprocating and stepless adjustment.

★ Equipped with an automatic cutting and grinding device, capable of semi-automatic cyclic operation.

★ The grinding wheel spindle can be optionally equipped with a ceramic spindle.

Main purpose and scope of application

This machine tool can be used for centerless through grinding of various cylindrical parts, annular parts, and long bar materials. It is also suitable for centerless cutting grinding of conical bodies with a cone degree less than 1:20 and various formed rotary parts. It is suitable for batch and mass production needs.
