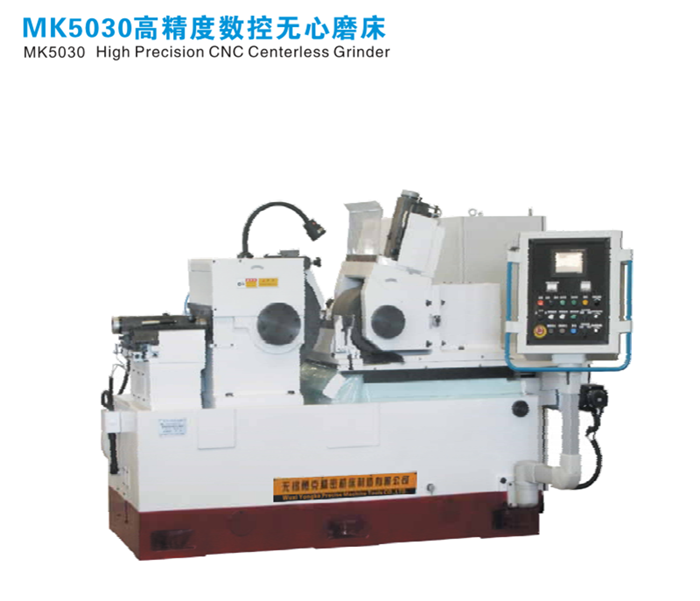

Main features of the machine tool:

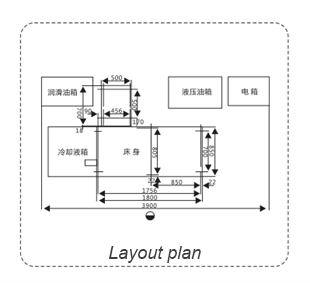

★ The layout of the machine tool adopts a single-sided movement method of the guide wheel frame.

★ The grinding wheel shaft is a suspended structure, and both the front and rear supports use multi piece dynamic pressure bearings. The main shaft adopts ceramic plating technology, which has good rigidity and can adapt to the needs of heavy load grinding and precision grinding.

★ The guide wheel shaft adopts a double support structure, with rolling bearings used for both front and rear supports, ensuring good system rigidity.

★ Adopting Mitsubishi or Siemens servo control system, manual adjustment, trimming and compensation can be completed. Automatic work cycle control, with high reliability and fault self diagnosis, using touch screen human-machine interface, easy to operate.

★ The feed mechanism is driven by an AC servo motor for feeding and grinding wheel dressing. The compensating motion is driven by a servo motor.

★ The feed guide wheel adopts a double V-shaped pre tensioned rolling guide rail, which is sensitive to feed.

★ The speed regulation of the guide wheel adopts AC frequency conversion for random adjustment.

★ Users can choose a balancing device (special order) to automatically balance the grinding wheel.

Main purpose and scope of application

This machine tool is suitable for centerless through grinding of various cylindrical and annular parts, as well as centerless cut in grinding of conical bodies and formed rotary parts with cone angles less than 3 degrees. It is suitable for large-scale production.
