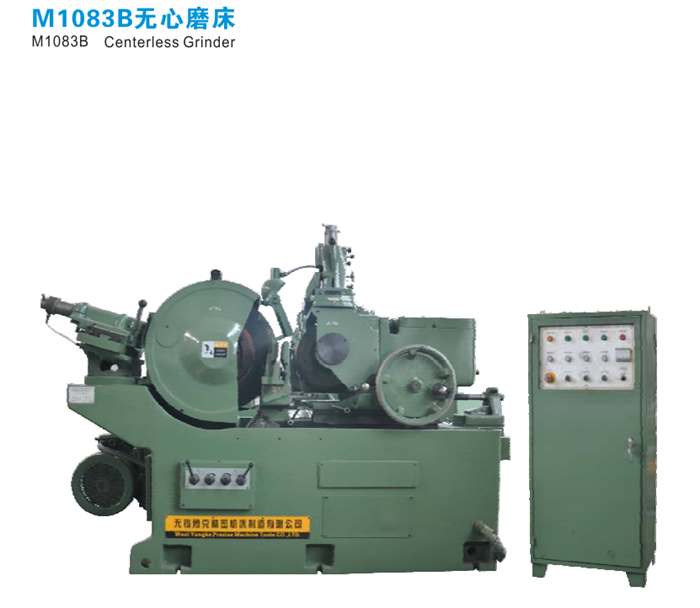

Main features of the machine tool:

★ The grinding wheel spindle bearing adopts a long five piece liquid dynamic pressure oil film bearing, which has a large load-bearing capacity, good rigidity, and smooth rotation.

★ The speed regulation of the guide wheel adopts AC variable frequency stepless speed regulation.

★ The guide wheel can rotate at a small angle in the horizontal plane. When grinding conical parts with small taper, the grinding wheel does not need to be shaped into a cone.

★ Both the grinding wheel dresser and the guide wheel dresser use hydraulic transmission for longitudinal movement, with uniform speed.

★ The imitation guide rail of the two trimmers adopts a double V-shaped steel ball rolling guide rail, which is sensitive to imitation, has no gap, high accuracy, and long service life.

★ The feed skateboard adopts a needle roller guide rail, which is sensitive to movement, has high feed accuracy, and has a long service life.

★ The cooling system adopts a large water tank, which ensures sufficient cooling water, fast heat dissipation, and cleaner operation, which is beneficial for improving grinding efficiency, accuracy, and roughness.

★ The grinding wheel spindle can be optionally equipped with a ceramic spindle.
