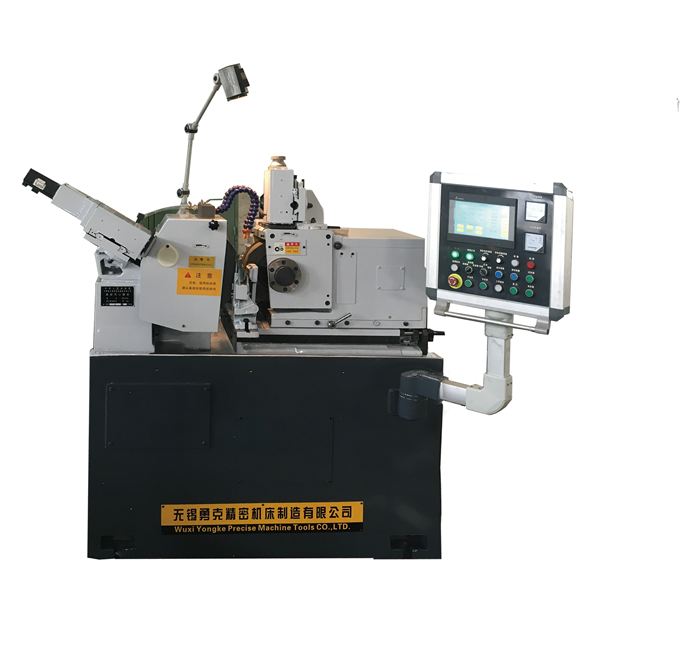

Main features of the machine tool:

★ The layout of the machine tool adopts a single-sided movement mode of the guide wheel frame, and the feed guide rail adopts a double V-shaped rolling steel guide rail (GCR15). The feed mechanism is driven by a servo motor to achieve sensitive displacement, feed, and compensation movements of the guide wheel frame, accurate positioning, long service life, and good system rigidity.

★ The grinding wheel has a linear speed of 45m/s, strong cutting ability, low grinding wheel wear rate, and good grinding surface quality. Compared to the 35m/s grinding wheel linear speed, the cutting ability and grinding wheel service life can be improved by 20% to 30%.

★ The grinding wheel and guide wheel shaft both adopt a suspended structure, making it easy to replace the grinding wheel and guide wheel.

★ The speed regulation of the guide wheel adopts AC variable frequency stepless speed regulation.

★ The operation adopts a display screen human-machine dialogue, with an automatic cutting in grinding program, and the feed rate, speed, and time can be adjusted.

★ Users can select cutting mechanisms, long workpiece grinding brackets, magnetic separators for cooling systems, and other components through special ordering methods to enhance performance.

Main purpose and scope of application

This machine tool is suitable for centerless through grinding of cylindrical and annular parts, and is suitable for mass production. After adding a cutting mechanism, it can be used for centerless cutting grinding of conical and formed rotary parts with a taper of no more than 1:20. Compared with similar machine tools, it has the characteristics of good rigidity, strong grinding ability, and high durability of grinding wheels.
